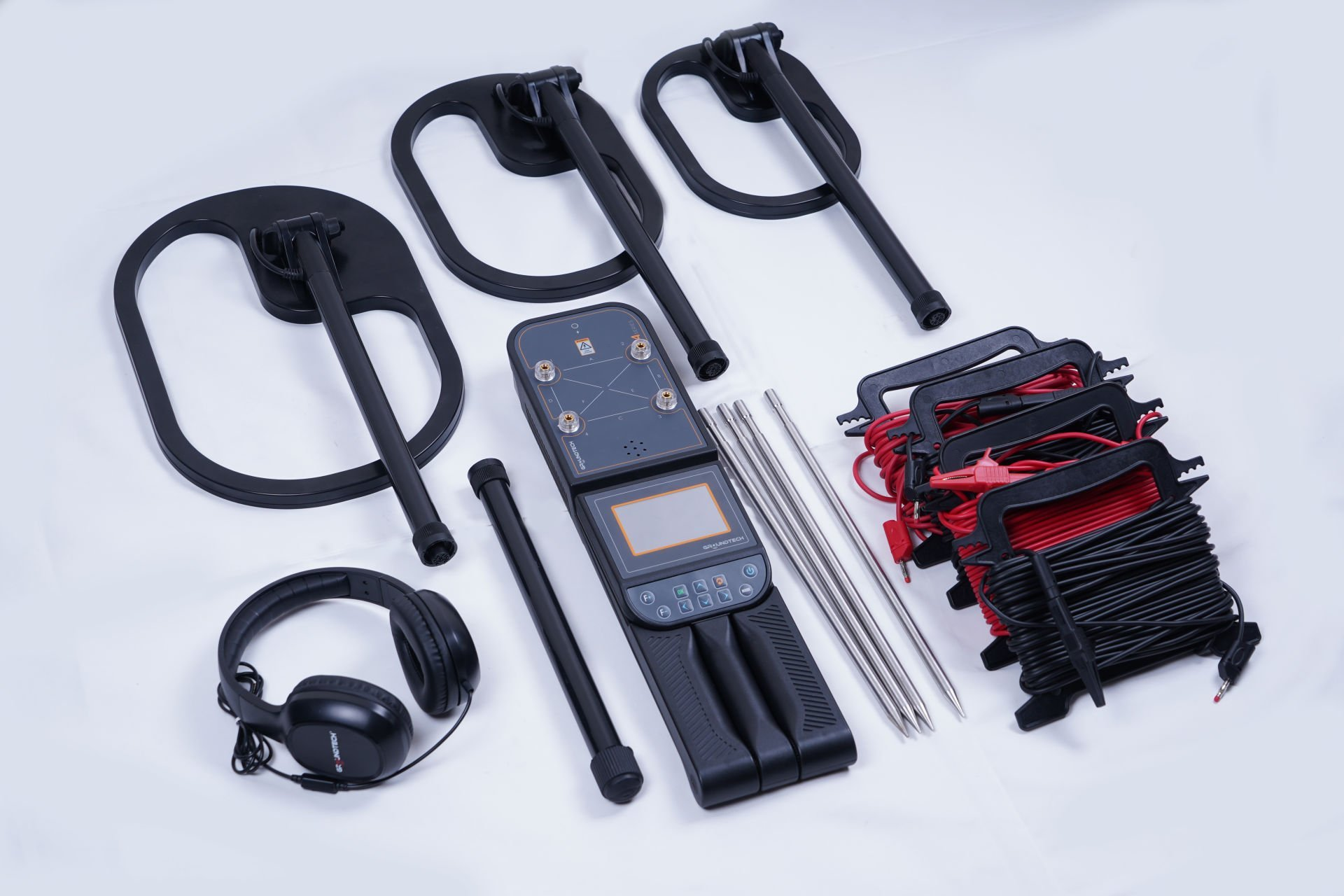

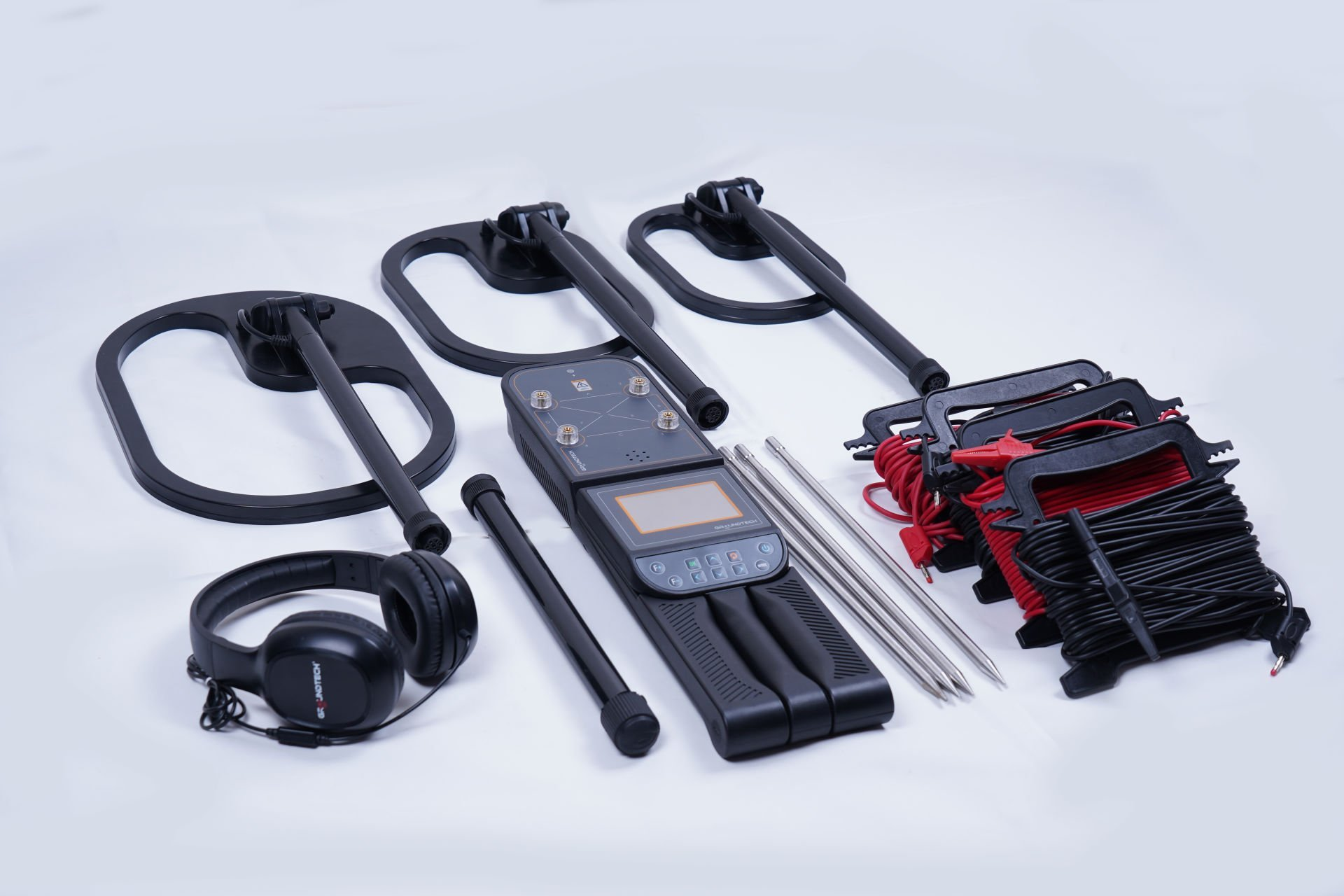

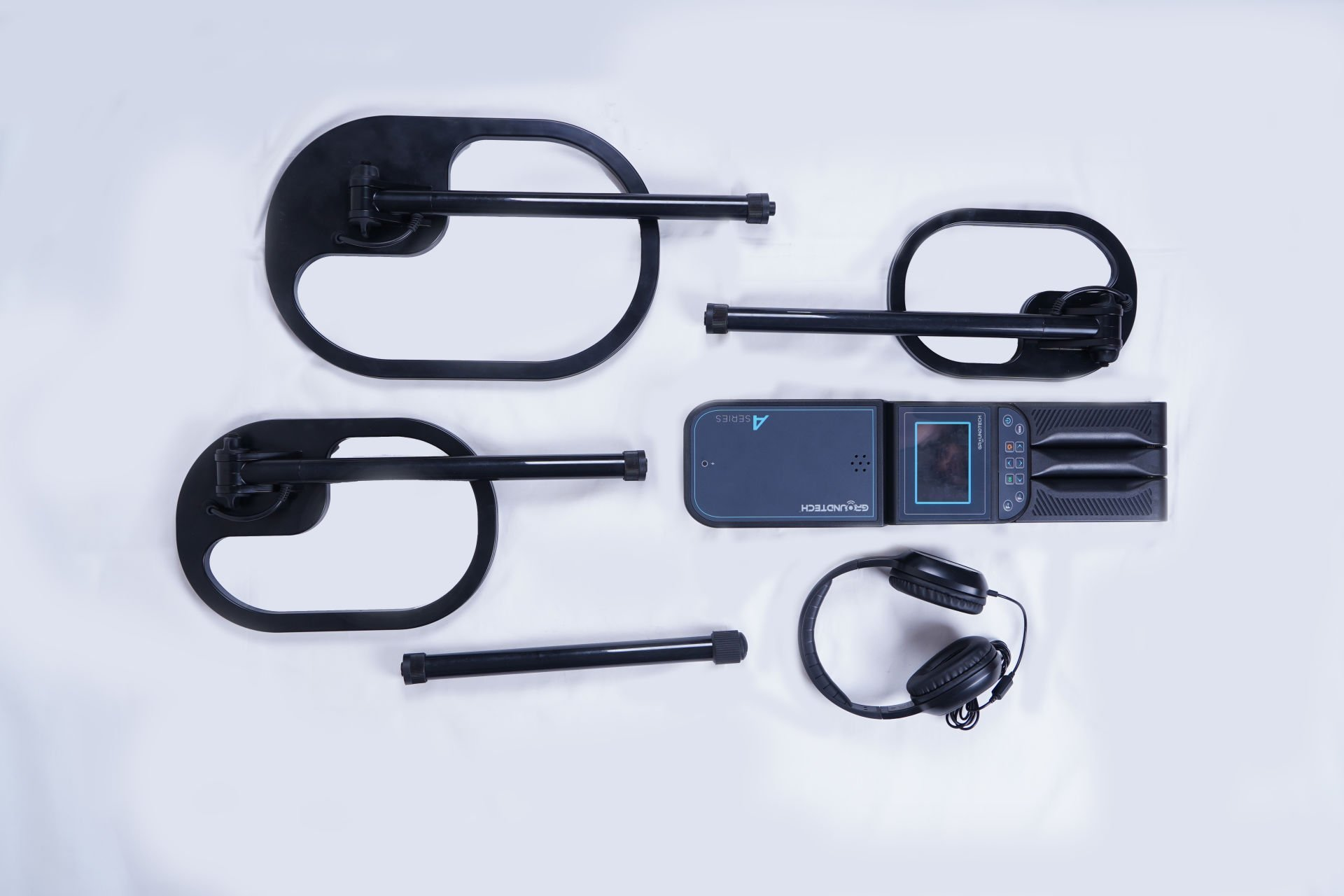

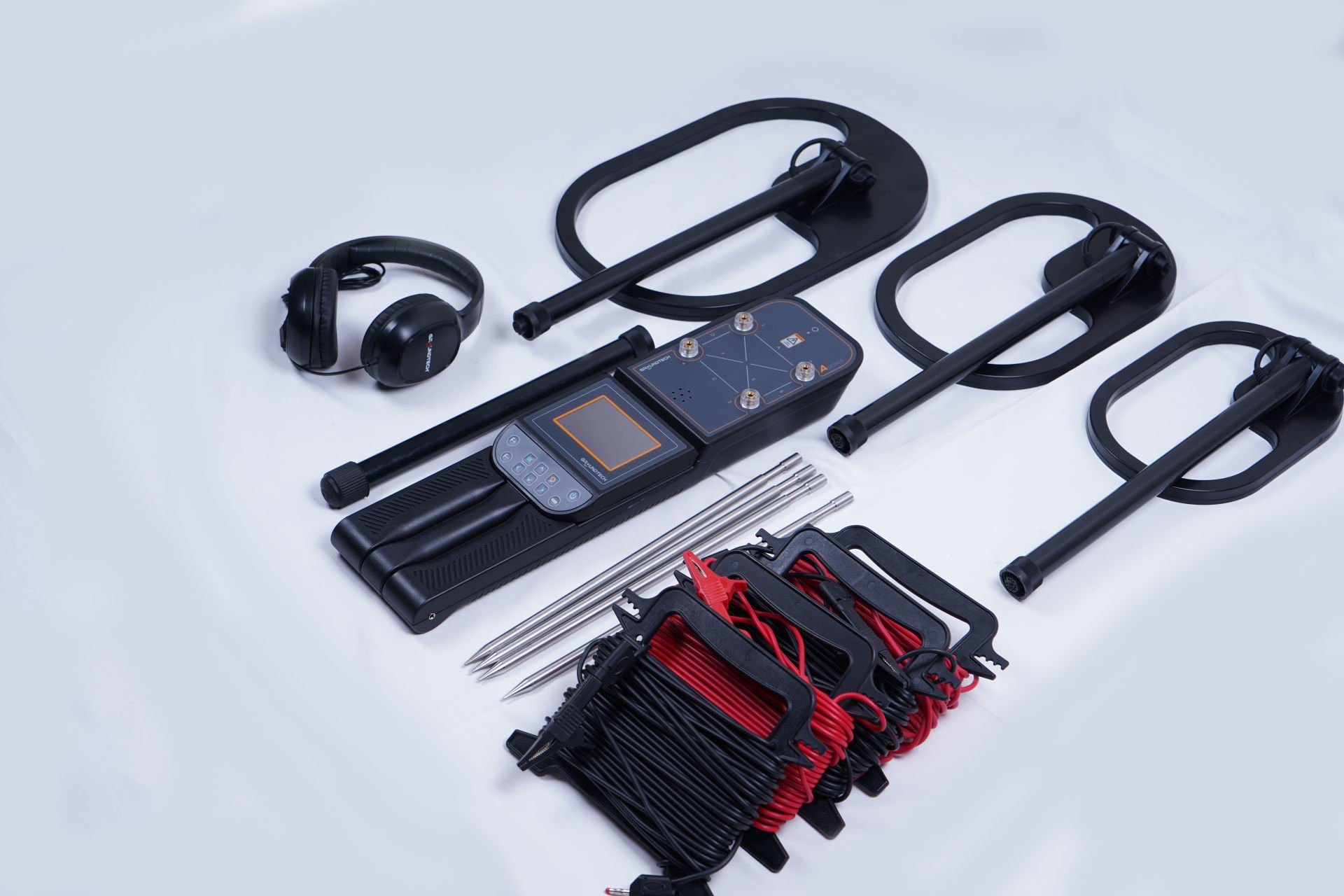

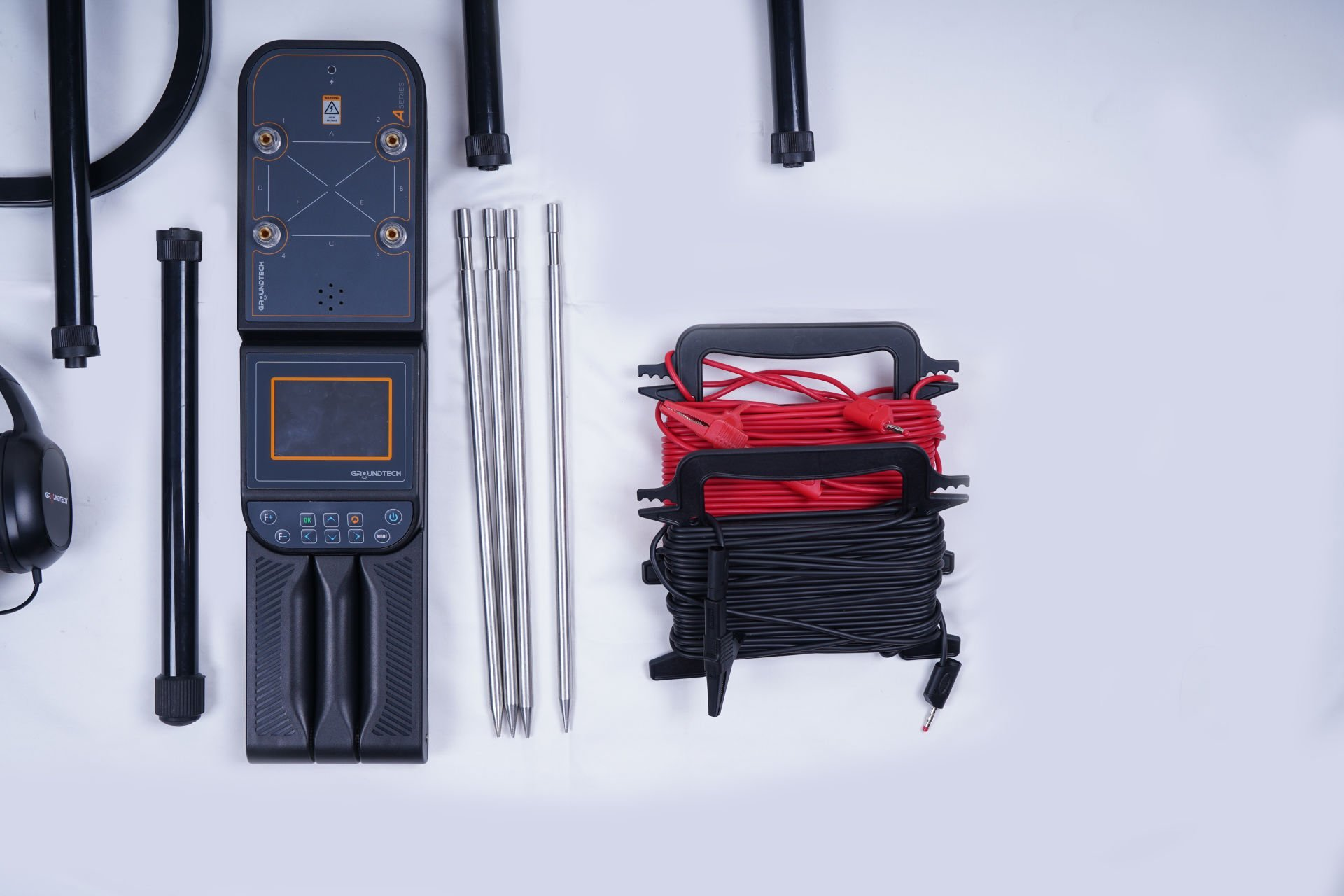

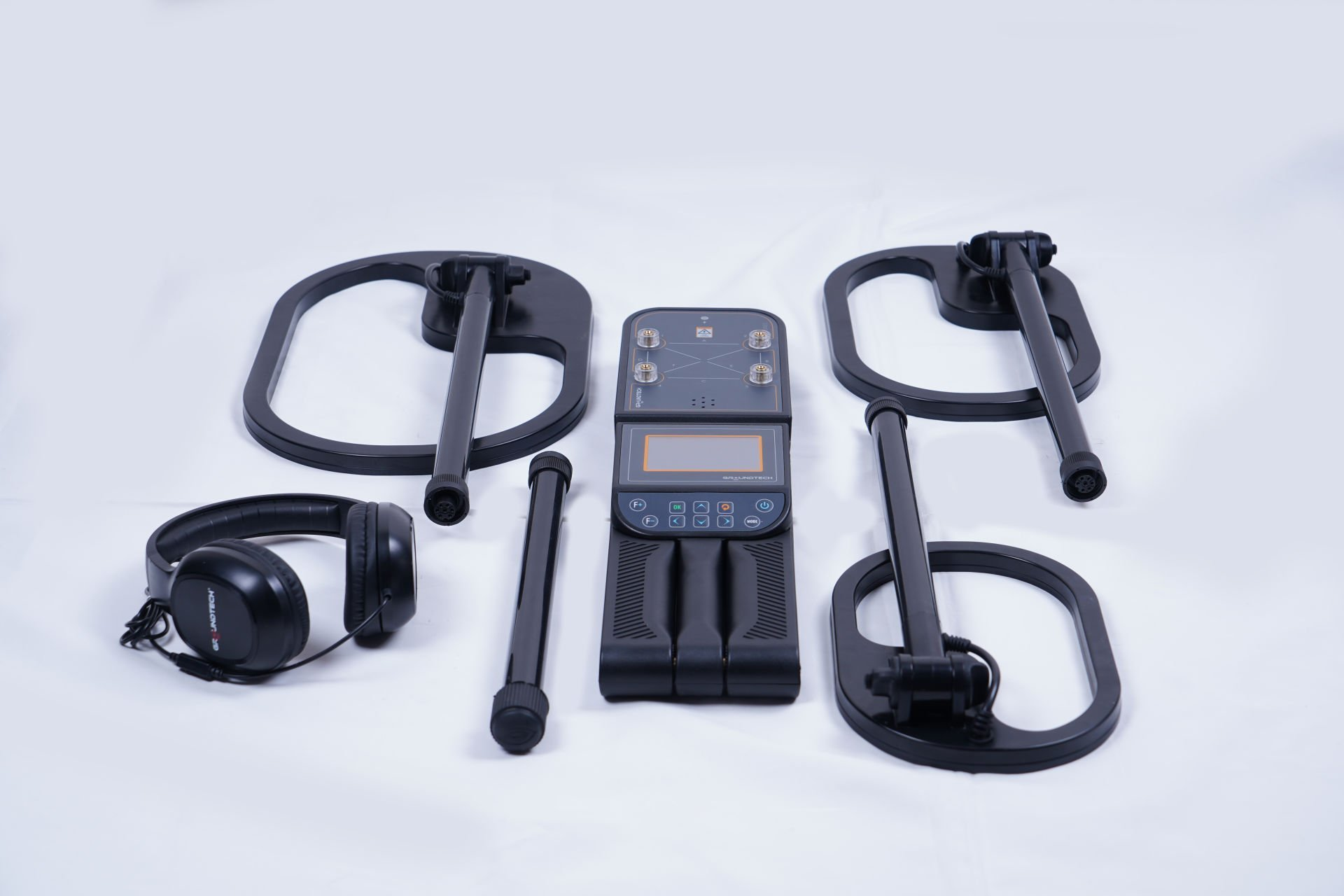

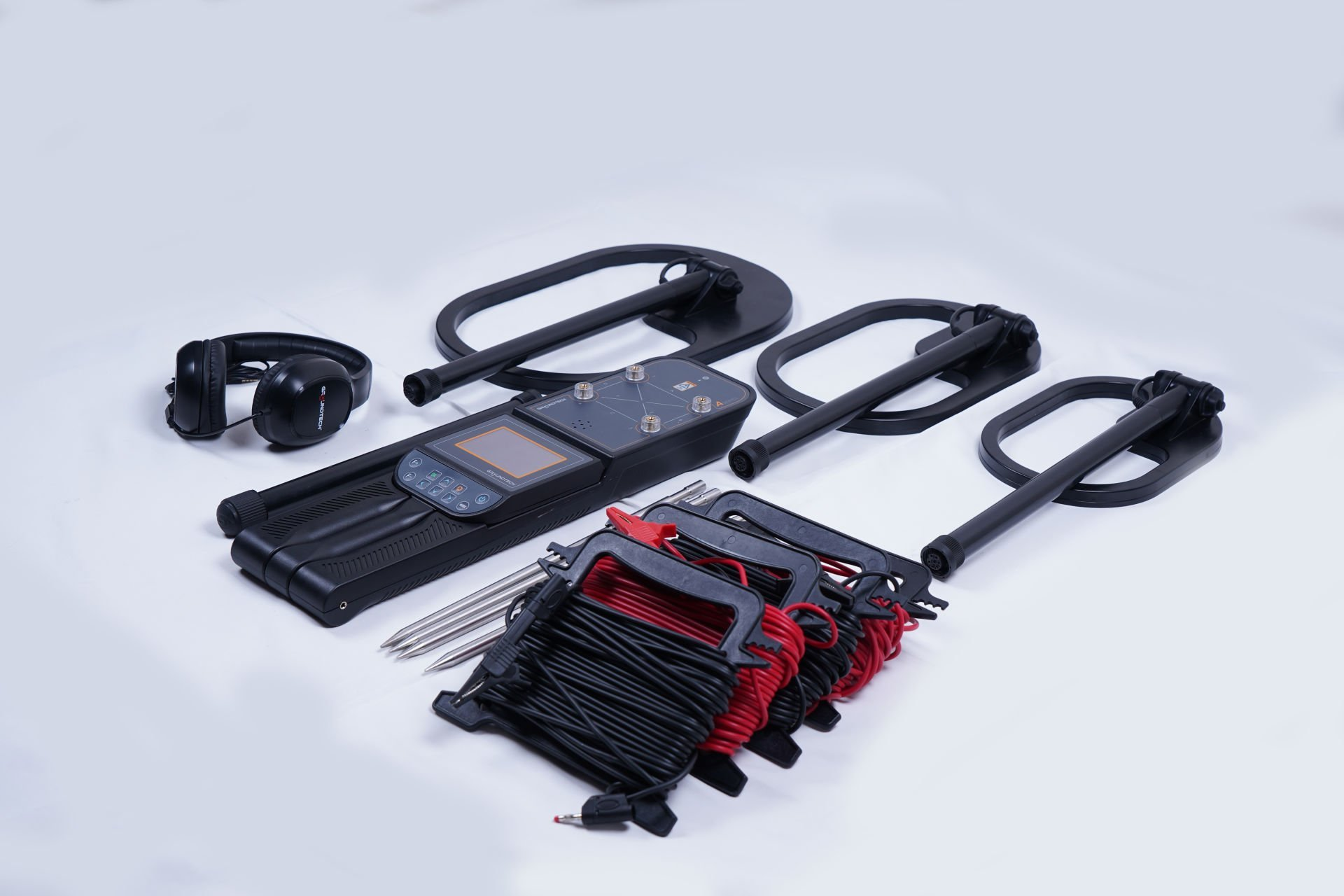

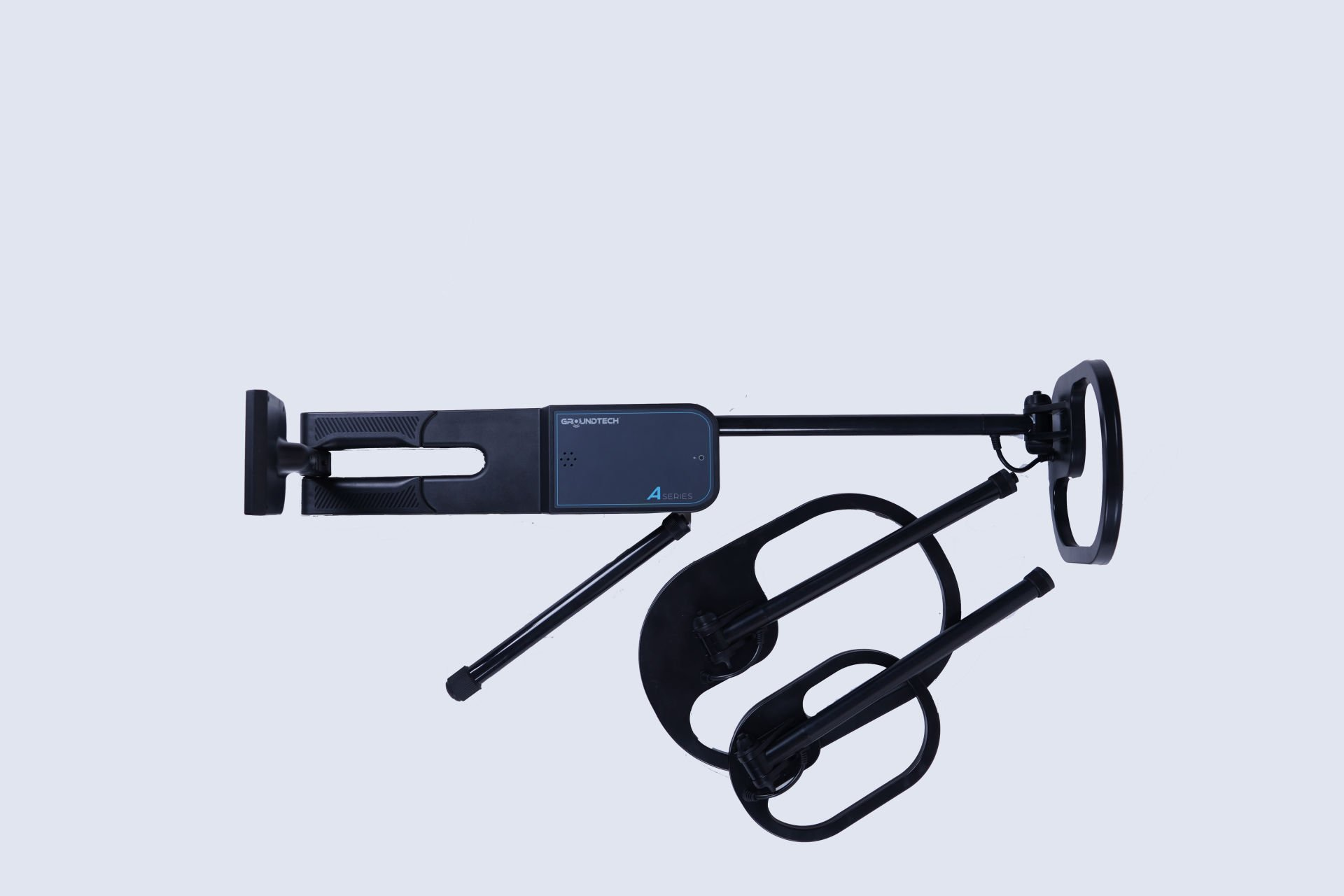

Conrad Groundtech A2-GEO Series Underground Imaging Systems is an advanced scanning family that scans underground layers with high resolution by combining radar and signal analysis technologies. This series offers the ability to visualize metal targets, cavities, tunnels, tombs and other underground anomalies in 2D and 3D. It is suitable for geophysical field studies, archaeological research, infrastructure detection and professional treasure searches.

Underground Radar Imaging Technology

• Sending and analyzing signals to underground layers with different radar frequencies
• 2D and 3D radar imaging support
• Visualizing depth layers with color maps
• Detection of metal targets and void/anomaly areas
• Target discrimination with advanced signal processing algorithms

Multiple Scanning Modes

• 2D Visualization: Showing underground layers as horizontal sections
• 3D Imaging:Presenting depth and location information with a three-dimensional radar map
• Metal Detection: Location and density detection of metallic objects
• Cavity/Anomaly Mode: Detection of cavities such as caves, tunnels and graves
• Live Scan: Monitoring real-time field data

Series Advantages

• Possibility to choose according to user needs with different A2-GEO models
• Both shallow and deep scanning capability with wide radar frequency range
• Upgrade sensors and equipment when needed, thanks to modular design
• Advanced data processing and rapid production of results in the field
• Intuitive use with user-friendly interface

User-Friendly Controls and Display

• Clear, easy-to-read screen interface
• Widescreen analysis with PC/Tablet connection support
• Intuitive menu structure and control keys
• Data recording, playback and reporting features
• Portable and field-oriented ergonomic design

Technical Specifications (A2-GEO Series)

• Detection Technology: Radar-based underground imaging
• View: 2D and 3D radar layer maps
• Depth:Target scanning at different ground levels with radar signals
• Display: Tablet/PC high resolution visualization
• Data Logging:Storing and analyzing signal and radar data
• Battery: Battery support for long field work
• Weight: Lightweight field portable system
• Controls:User-friendly menu with graphical interface

Usage Areas

• Underground metal target searches
• Detection of cavities, tunnels and caves
• Geophysical and geological field analyzes
• Archaeological surveys
• Location of infrastructure elements (pipe, cable, water line)
• Professional treasure searches and field team work
